TJ-C35A-100




液压软管扣压 2"(Crimping of hydraulic hose assemblies up to 2" I.D.)
特征

- TJ-C35A-100属于产业用软管及液压软管的扣压?备，结构优良。
- 装载了 Stop Switch 以提高?产效率，采用了操作简便的控制系统，任何人都容易?手。
- 主钢模最大开度 +33mm, 钢模箱安装在?备的正面下部。

TECHNICAL DATA DIE SET
Crimping force/最大扣压力 2200KN/220ton
Crimping range / 扣压范围 75mm
Max hose size(inches)软管最大直径 2"
Dies opening 33mm
Master die 100mm
Dies (set) STD-C35A-100
Crimping speed/close 3mm/sec
/crimp 3mm/sec
/open 13mm/sec

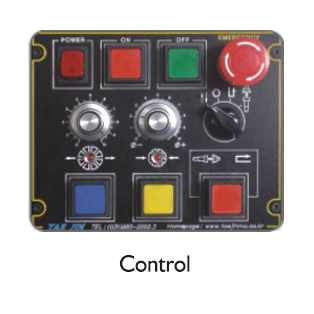

Control TJ-control A included
TJ-control D optional
Standard voltage 220/380volt 60hz 3ph
Motor power 5.5kw

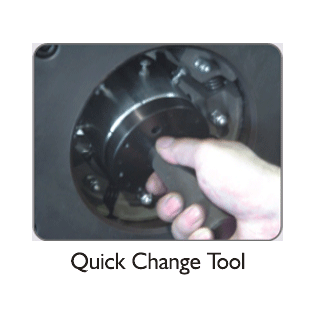

Quick change system included
Back mirror included

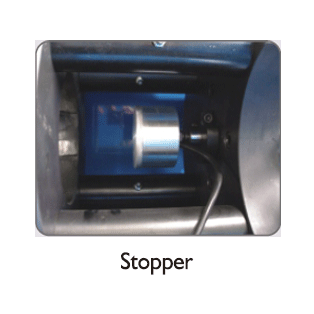

Back stopper included
Electric pedal optional

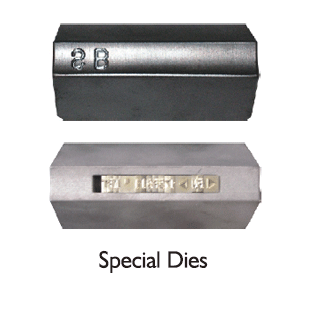

Marking/spacial dies optional
Length 920mm
Width 660mm
Height 1320mm
Weight 600kg
NO CRIMPING RANGE(mm) L(mm)
14 14-16 55
16 16-20 55
20 20-24 55
24 24-26 75
26 26-30 75
30 30-34 75
34 34-39 75
39 39-45 85
45 45-51 85
51 51-57 85
57 57-63 85
63 63-69 85
69 69-77 85



  SPECIAL
10 10-12 55
12 12-14 55
