TJ-NC60 |
| |
|
|
|
TECHNICAL DATA |
| Crimping
force |
350KN/35ton |
Crimping
range  |
60mm |
| Max

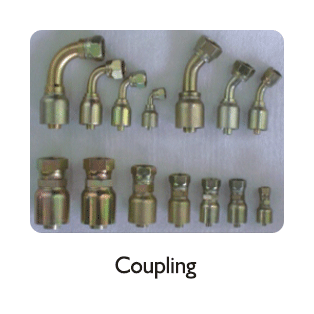

Coupling size(inches) |
1-1/4" |
| Dies
opening |
20mm |
| Dies
(set) |
STD-NC |
| Crimping
speed/crimp |
8mm/sec |
| Standard
voltage |
220/380volt 60hz 3ph |
| Motor
power |
3.7kw |
| Back
stopper |
included |
| Electric
pedal |
included |
| Marking/spacial
dies |
optional |
| Length |
900mm |
| Width |
760mm |
| Height |
1500mm |
| Weight |
450kg |
|
| |
|
|
