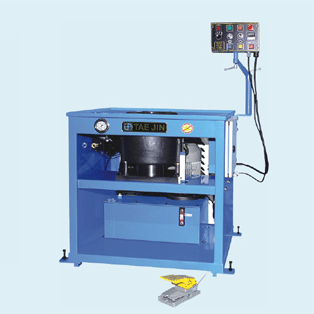

TJ-NC80 |
| |
|
|
|
| ?img src="http://www.taejinmc.co.kr/images/bullet_01.gif" width="10" height="9">
TECHNICAL DATA |
| Crimping
force |
530KN/53ton |
| Crimping
range 졬 |
80mm |
| Max
Coupling size(inches) |
2-1/2" |
| Dies
opening젨?/TD>
| 30mm |
| Dies
(set) |
STD-NC |
| Crimping
speed/crimp |
6mm/sec |
| Standard
voltage |
220/380volt 60hz 3ph |
| Motor
power |
3.7kw |
| Back
stopper |
included |
| Electric
pedal |
included |
| Marking/spacial
dies |
optional |
| Length |
920mm |
| Width |
760mm |
| Height |
1500mm |
| Weight |
450kg |
|
| ?/td>
|
|
|
