TJ-CM10A |
| |
|
|
|
| |
TECHNICAL DATA |
| Capacity
on4spirals hose |
1" |
| Capacity
on2spirals hose |
1 1/4" |
| Maximum
cutting Ø |
55mm |
| Revolutions/minute |
2580 |
| Pneumatic
input |
Max 7 Bar |
| Blade
Ø |
250mm |
| Suction
connections |
included |
| Weight |
180kg |
| Dimensions
L×D×H |
520×600×1350 mm |
| Standard
voltage |
220/380V 60Hz |
| Motor
power |
3.7kw |
| Stroke
counter |
included |
| Safety
protection |
included |

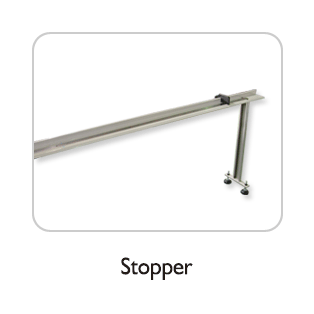

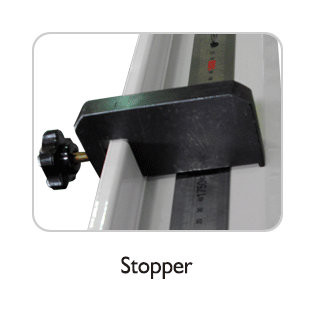

| Stopper |
optional |

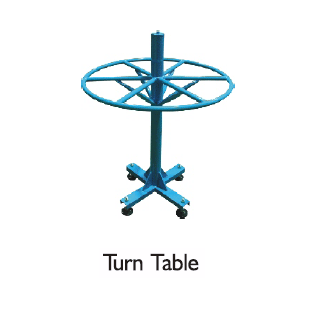

| Turn
table |
optional |
|
| |
|
|
